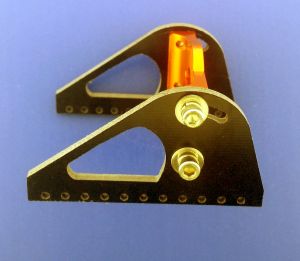

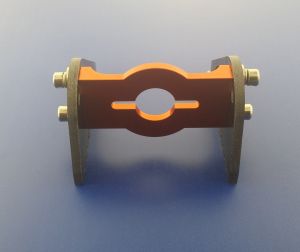

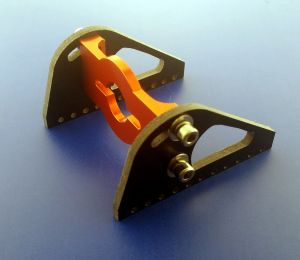

Adjustable motor mount for 380, 500, 540 sized motors with adjustable motor hole spacing from 19mm to 25mm.
Angle is adjustable to allow straight alignment with propeller cable.
The anodized aluminum mounting plate with black fiberglass mounting stands that have holes drilled in the bottom to allow epoxy to flow into them to make a supperior bond to the hull. This mount can fit a flat mounting area like a rigger or hydro, or a deep vee.
Fits most 380, 540, 550, 600 motors.
Feigao & Nemesis 380, 540, Hacker B50, B50L & B50xl.
Leopard 2845, 2860, 3640, 3650
Aqua SuperVee motor.
Ammo 2300 Motor.
Tp Power 36mm, Leopard 36mm Motors
Fits most motors that use a 19mm to 25mm mounting hole spacing, as long as the motor mounting screw is not larger than 3mm.
Center metal section measures 47mm wide (not including side stands).
Requires you to provide motor mounting screws.
