SkyRc Mini Heat Vision

SkyRc Infrared Thermometer

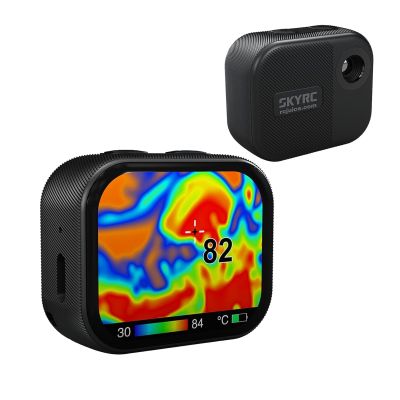

See the heat before it becomes a failure. The iTV500 Mini HeatVision from SKYRC is a pocket-sized thermal imager designed for RC diagnostics and tuning. Its FIR sensor renders a live thermal map so you can spot hot MOSFETs, slipping belts, weak solder joints, stressed bearings, or an over-geared motor - all without contact. A bright 1.83" capacitive touchscreen shows hot/cold markers and lets you tap any point for an instant reading; switch °C/°F/K, tweak brightness, and fine-tune emissivity (0.01-1.00) for accurate temps on metals, plastics, carbon, and rubber.

Despite weighing only about 38 grams, the iTV500 packs serious capability:

• -20 °C to 300 °C (-4-572 °F) measurement range
• ±2 °C accuracy,
• 8 FPS refresh, and a 55x35° field of view for quick scans of motors, ESCs, connectors, tires, and LiPo packs.
• Power comes from a 600 mAh rechargeable battery with USB-C charging.
• Firmware updates use simple UF2 drag-and-drop.
• Choose Rainbow, Ironbow, or White Hot palettes; the six-language UI (EN/CN/FR/DE/ES/JP) and auto power-off make it pit-friendly.

For the highest accuracy, measure within <20 cm.
