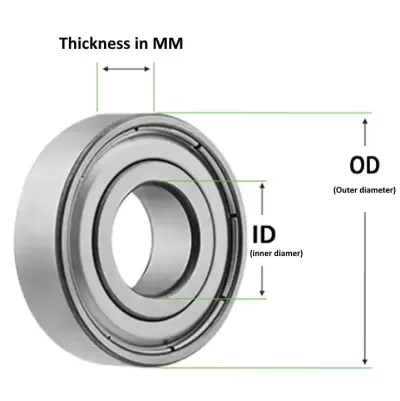

Application guide for brushless motor bearings. This is a small list of the many brushless motor applications that these can be used in. Please understand that due to many manufacturers changing designs, this is only a basic guide. We suggest measuring the bearing you are replacing before ordering.Bearings are measured in whole sizes and can easily be measured with a simple ruler. Three dimensions are needed: thickness, Inner diameter (ID), and Outer diameter (OD)Example sizing:8 x 16 x 58mm ID (inner diameter) x 16mm OD(outside diameter) x 5mm width
5 x 11 x 5 : Feigao 540 & Nemesis S, L & XL inrunner motors5 x 11 x 5 : Hacker 540 S, L & XL inrunner motors4 x 10 x 4 : Leopard 28mm series inrunner motors6 x 15 x 5 : Feigao 580L, Kb45L and Kb45XL motors w/6mm shaft5 x 11 x 5 : Leopard 36mm Version 15 x 13 x 4 : Leopard 36mm Version 25 x 16 x 5 : Leopard 40mm6 x 19 x 6 : Leopard 56mm motor w/6mm shaft8 x 19 x 6 : Leopard 56mm motor w/8mm shaft, front bearing size.6 x 19 x 6 : Leopard 56mm motor w/8mm shaft, rear bearing size.5 x 13 x 5 : Neu 1409, 1412, 1415 series motors5 x 13 x 5 : Neu 1515 series motors5 x 19 x 6 : Neu 1518,1521,1524,1527,1530 w/5mm shaft, front bearing size.5 x 16 x 5 : Neu 1518,1521,1524,1527,1530 w/5mm shaft, rear bearing size.8 x 16 x 5 : Neu 1518,1521,1524,1527,1530 w/8mm shaft, rear bearing size.5 x 11 x 4 : TP36xx-V2, TP40xx-v2- TP42xx-v25 x 14 x 5 : TenShock Motors8 x 16 x 5 : TP40708 x 22 x 7 : TP5660, TP5670, TP5680 with 8mm Shaft
